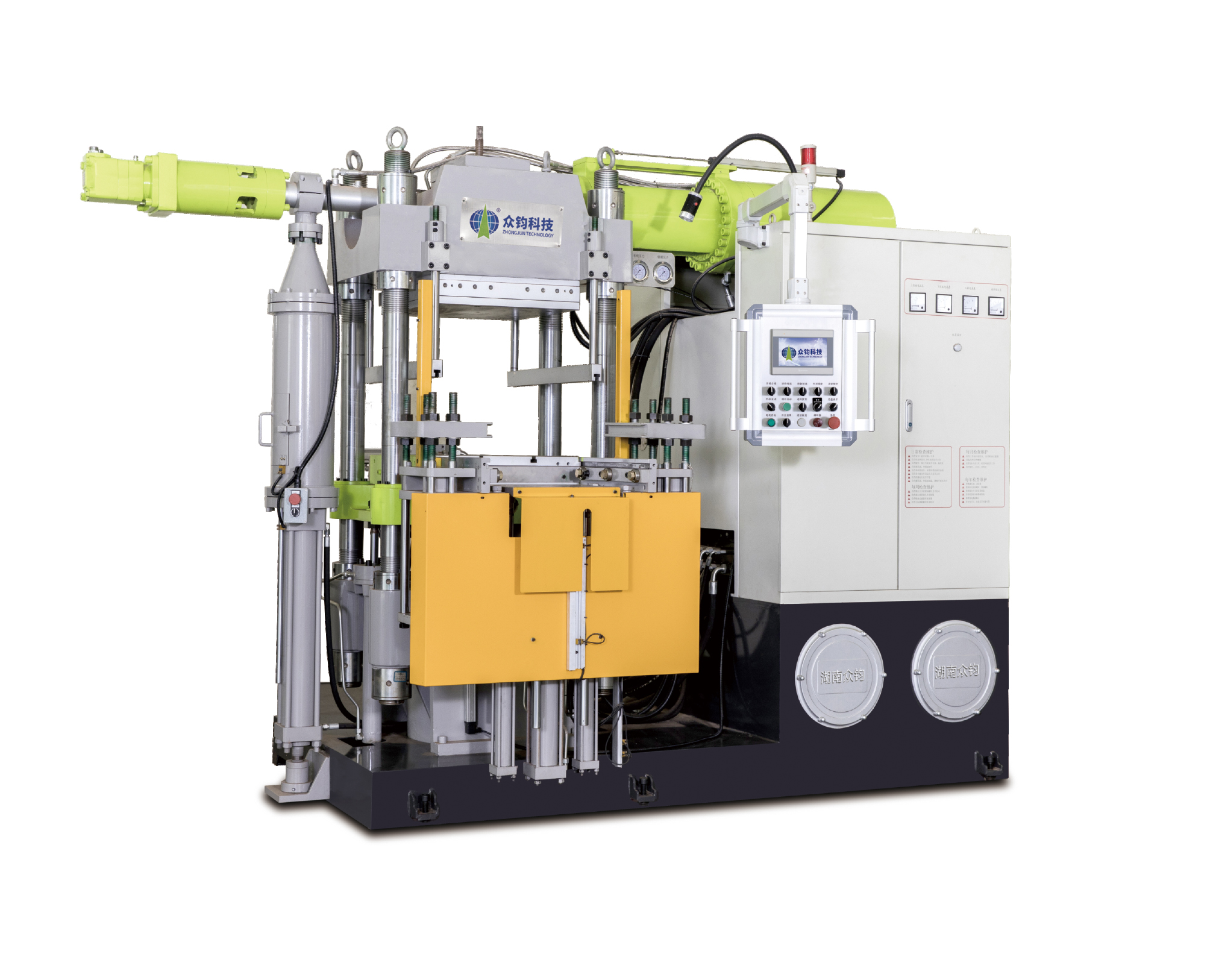

Advanced Horizontal Silicone Rubber Molder
It is specifically designed for silicone rubber and low-hardness rubber, offering dual functionality for both silicone and rubber processing.
Suitable for rubber hardness ranging from 50 to 75 degrees, this machine is equipped with standard features including ejector needles in 2RT, 3RT, and 4RT configurations, and offers a versatile injection volume capacity of 3000/4000/5000/6000cc, catering to a wide range of production needs.
MACHINE FEATURES
01. Double proportional oil system design, good stability,stable conversion, low failure rate,reliable,easy to use and safe.
02. The whole machine body has sufficient rigidity,wear resistance, good guiding accuracy and stability.
03. Cooperate with the injection device to realize four-stage injection speed and injection pressure, and three-stage holding pressure.
04. It can meet the requirements of different rubber materials for injection conditions and has rapid production capacity.
SUITABLE PRODUCT
Industrial rubber Medical Lifestyle Aerospace Automotive parts Seals
TECHNICSL PARAMETERS
Type | ZJBH- 200T | ZJBH - 300T | ZJBH - 400T |
Injection volume（CC） | 2500 | 4000 | 4000 |
Injection pressure（bar） | 1880 | 1880 | 1820 |
Clamping force（Ton） | 200 | 300 | 400 |
Heating plate dimension（mm） | 560X600 | 700X700 | 800X800 |
Opening stroke（mm) | 500 | 550 | 600 |
Min.mould thickness（mm） | 60 | 60 | 110 |
Total power（kw） | 33 | 45 | 55 |
Machine size（m） (Length X Width X Height) | 3.5X1.7X2.7 | 3.7X1.8X3 | 5.7X1.8X3 |
Whole weight（Ton） | 7.5 | 9.5 | 12 |
