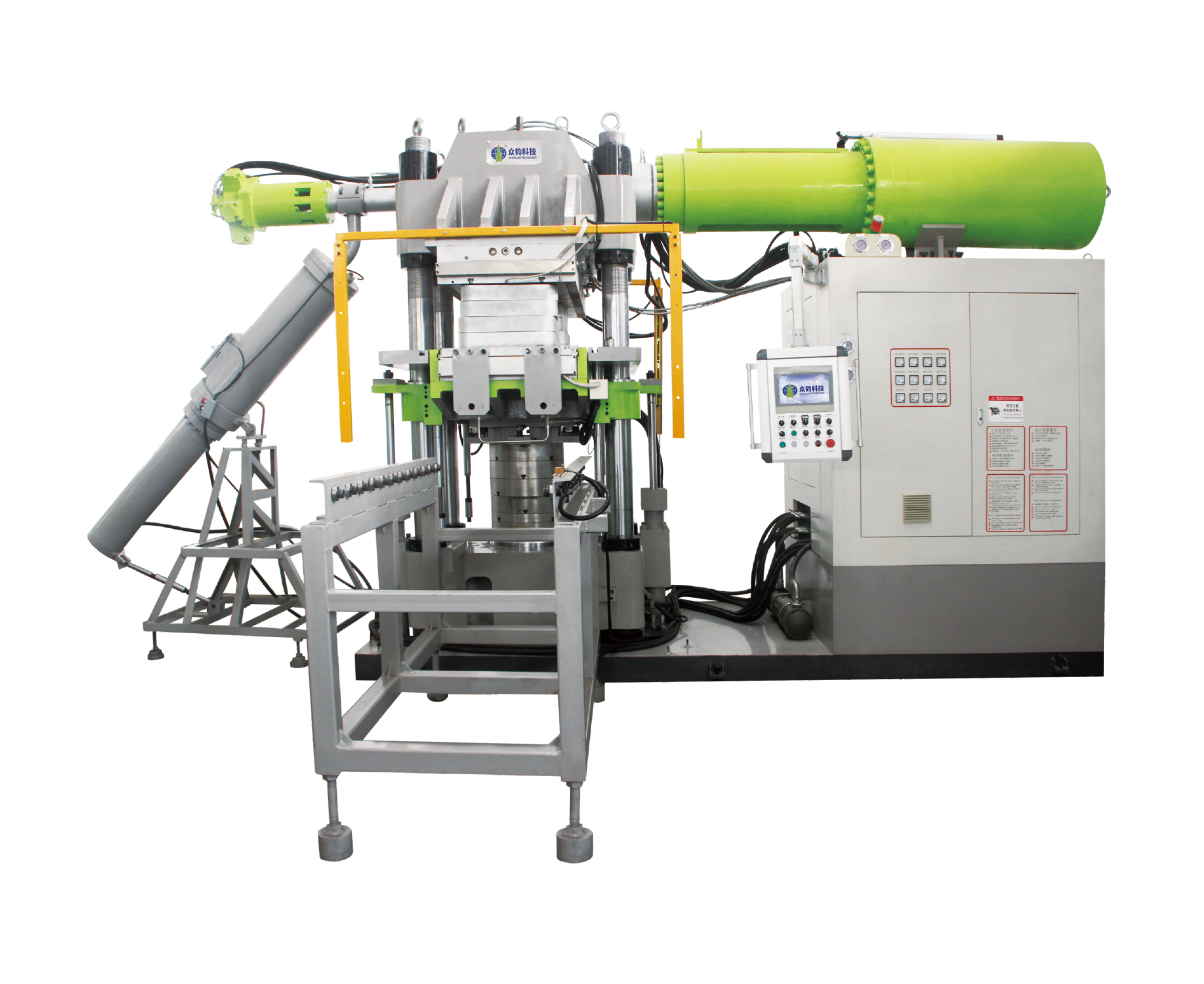

Horizontal Composite Silica Gel Injection Molding Machine
It's commonly used in industries like automotive, electronics, and medical equipment manufacturing to produce items such as seals, gaskets, and buttons.
These products need the unique properties of composite silica gel, like flexibility and heat resistance.
Overall, it's a valuable tool for making high-quality products with complex shapes and exact dimensions from composite silica gel.
MACHINE FEATURES
01.The pedestal adopts the special mechanics design,the flatness is better,the product quality is better.
02.Special two-stage feeding design makes raw materials get better exhaust effect,to prevent the
occurrence of clinker.
03.The adoption of high precision electronic ruler design can accurately control the size of injection.
04.The adoption of full-scale oil system,low noise and the automatic adjustment of the pressure
ratio of the function are accurate and stable.
05.The machine adopts three-step clamping mode,the height of the ground is 1.25 meters from the
worktable, which saves space and is convenient to operate.
SUITABLE PRODUCT
Suitable for Silicon Rubber, Ethylene Propylene Diene Monomer (EPDM) to produce hollow core insulator,long rodinsulator,
surge arrester,cable accessories,switch gear.
TECHNICSL PARAMETERS
Type | ZJBH - 300T | ZJBH - 500T | ZJBH - 650T | ZJBH - 1000T | ZJBH - 2000T |
Injection volume（CC） | 4000-6000 | 10000-15000 | 10000-20000 | 25000 | 50000 |
Injection pressure（bar） | 1880 | 1450 | 1470 | 1388 | 1388 |
Clamping force（Ton） | 300 | 500 | 650 | 1000 | 2000 |
Heating plate dimension（mm） | 630X1300 | 630X1600 | 720X1800 | 800X2600 | 1000X2600 |
Opening stroke（mm) | 550 | 600 | 700 | 1100 | 1200 |
Min.mould thickness（mm） | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
Total power（kw） | 45 | 85 | 95 | 120 | 180 |
Machine size (m)(Length X Width X Height） | 3.7X1.7X2.7 | 6.2X2.5X3.7 | 6.4X3.3X3.2 | 3.7X1.7X2.7 | 3.7X1.7X2.7 |
Whole weight（Ton） | 9.5 | 20 | 24 | 45 | 60 |
