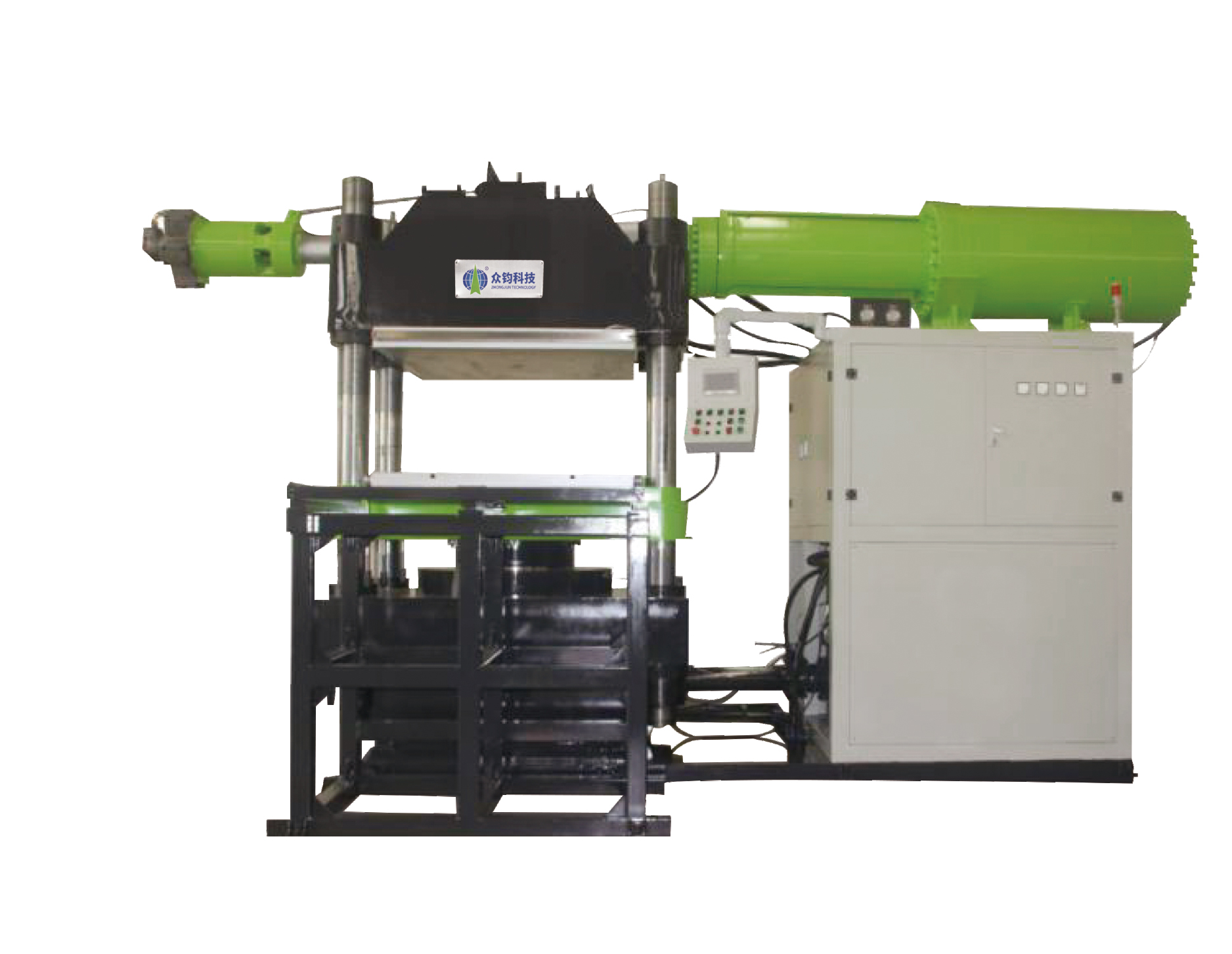

Advanced Horizontal Rear Out Injection Molding Machine
Its horizontal design and advanced injection technology make it suitable for producing items like automotive parts and industrial containers.
With a clamping force of 1000 tons, it can handle big molds and create complex shapes accurately.
MACHINE FEATURES
01. The base adopts special mechanical design,the flatness is better,and the product quality is better.
02. Special two-stage feeding design makes the raw materials get better exhaust effect and prevents
dead glue.
03. Adopt the high-precision electronic ruler design,which can accurately control the injection volume.
04. It adopts a full-scale oil circuit system with low noise and the function of automatically adjusting the
pressure ratio,which is accurate and stable.
SUITABLE PRODUCT
Industrial rubber Medical Lifestyle Aerospace Automotive parts Seals
TECHNICSL PARAMETERS
Type | ZJBH - 1000T |
Injection volume（CC） | 40000 |
Injection pressure（bar） | 1388 |
Clamping force（Ton） | 1000 |
Heating plate dimension（mm） | 1500X1500 |
Opening stroke（mm) | 600 |
Min.mould thickness（mm） | 100 |
Total power（kw） | 113 |
Machine size（m）（Length X Width X Height） | 6.7X5X4 |
Whole weight（Ton） | 50 |
