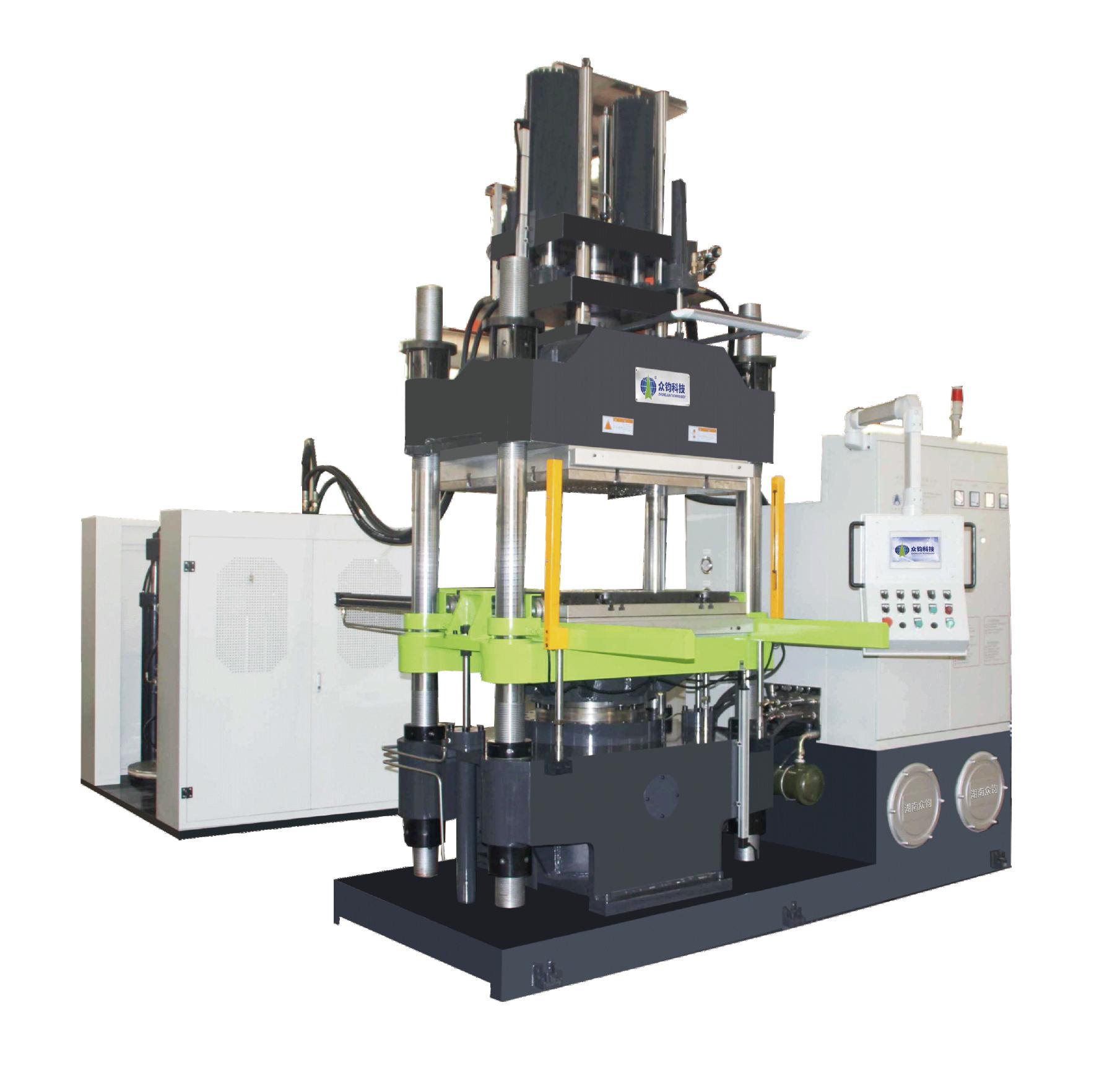

Liquid Silicone Injection Molding Machine
It's commonly used in industries like healthcare, automotive, electronics, and consumer goods.
These machines are ideal for making items needing silicone's special qualities, like medical devices, automotive seals, and kitchenware.
Overall, the Liquid Silicone Injection Molding Machine is a specialized tool for making various silicone-based products accurately and efficiently.
MACHINE FEATURES
01. Using a linear reciprocating plug pump with forced feed,bidirectional discharge is uniform and stable.
02. It has the function of automatic oil replenishment for the closed oil circuit of the synchronous oil
cylinder to ensure the accurate ratio of the two groups of rubber.
03. Advanced mixing device,good mixing effect,small volume,no dead angle in the internal flow channel.
04. 20L and 200L barrels are shared.
SUITABLE PRODUCT
Medical Home appliances Food packaging Aerospace
TECHNICSL PARAMETERS
Type | ZJB - 20L | ZJB - 200L | ZJJ - 4L | ZJJ - 6L | ZJJ - 10L | ZJJ - 20L | ZHJ - 40L |
Injection volume（CC） | None | None | 4 | 6 | 10 | 20 | 40 |
Rubber output pressure（Mpa） | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 |
Rubber output（L／MIN） | 0-4 | 0-4 | 0-6 | 0-6 | 0-6 | 0-6 | 0-6 |
Bucket volume（L） | 20 | 200/20 | 200/20 | 200/20 | 200/20 | 200/20 | 200/20 |
Barrel inner diameter（mm） | 280 | 571.5/280 | 571.5/280 | 571.5/280 | 571.5/280 | 571.5/280 | 571.5/280 |
Total power（kw） | 3 | 3 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
Machine size（m） (Length X Width X Height） | 1.1X0.8X1.7 | 1.6X1.4X1.8 | 2.2X1X2.3 | 2.7X1.5X2.3 | 2.7X1.3X2.7 | 1.9X1.3X3 | 3.1X1.5X3.4 |
Whole weight（Ton） | 1 | 1.5 | 2.5 | 3 | 3.5 | 4 | 5 |
