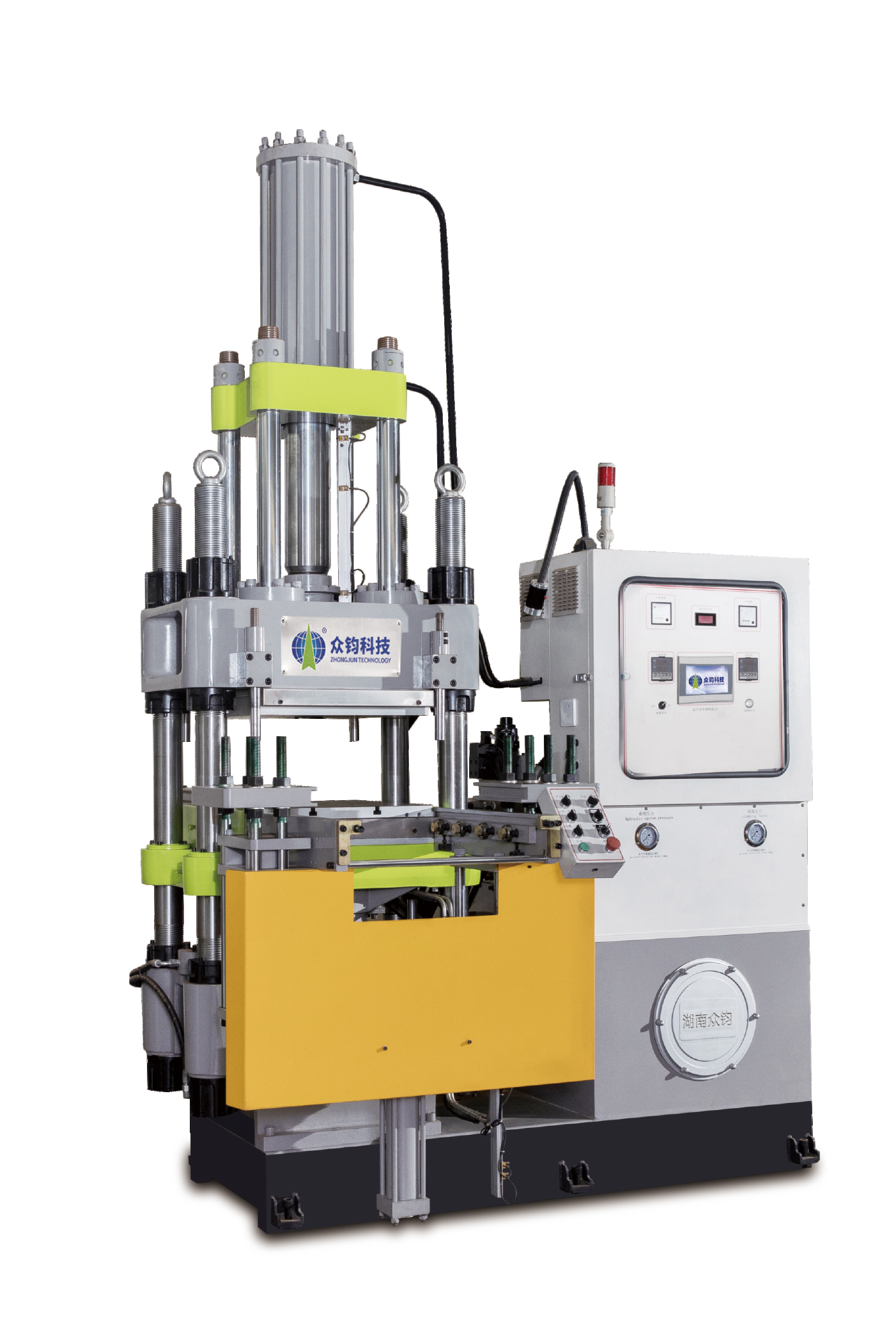

Precision Rubber Injection Molding Machine
This equipment is renowned for its cost-efficiency, attributed to lower initial investment requirements compared to other molding technologies.
Key Advantages
• Cost-Effectiveness: This machine is particularly valued for its ability to produce high-quality, low-end products at a reduced cost, making it ideal for small-scale productions and the development of prototypes.
• Flexibility and Efficiency: Designed with versatility in mind, the machine allows for swift material changes and easy maintenance, ensuring minimal downtime and enhanced productivity. This feature is crucial for manufacturing products that demand higher material density and precision, setting it apart from conventional flatbed machines.
MACHINE FEATURES
01.Double proportional oil system design,good stability,stable conversion,low failure rate,reliable,easy to use and safe.
02.The body of the whole equipment has sufficient rigidity,wear resistance,good guiding accuracy and stability. 03.Cooperate with the injection device to realize four-stage injection speed and injection
pressure,and three-stage holding pressure.
04. It can meet the requirements of different rubber materials for injection conditions and has rapid production capacity.
05.Equipped with a mobile die-casting material chamber to effectively prevent scorching of rubber.
SUITABLE PRODUCT
Industrial rubber Bridge shock absorption Daily life Sealing
TECHNICSL PARAMETERS
Type | ZJZ - 100T | ZJZ - 200T | ZJZ - 300T |
Clamping force（Ton） | 100 | 200 | 300 |
Opening stroke（mm) | 300 | 300 | 300 |
Heating plate dimension（mm） | 480X500 | 560X600 | 650X700 |
Main cylinder diameter（mm） | Φ250 | Φ360 | Φ450 |
| Injection volume（CC） | 1000 | 2000 | 4000 |
Motor power（Kw） | 5.5 | 11 | 15 |
Heating power（Kw） | 12 | 16.4 | 24 |
Mold opening form | Rise and fall - Entry and exit moulding - Double layer moulding - Front top moulding (multi-layer moulding) | ||
Machine size（m） (Length X Width X Height) | 1.5X1.8X2.1 | 1.7X1.9X2.8 | 1.8X1.9X2.95 |
Whole weight（Ton） | 5.5 | 7.5 | 8.2 |
