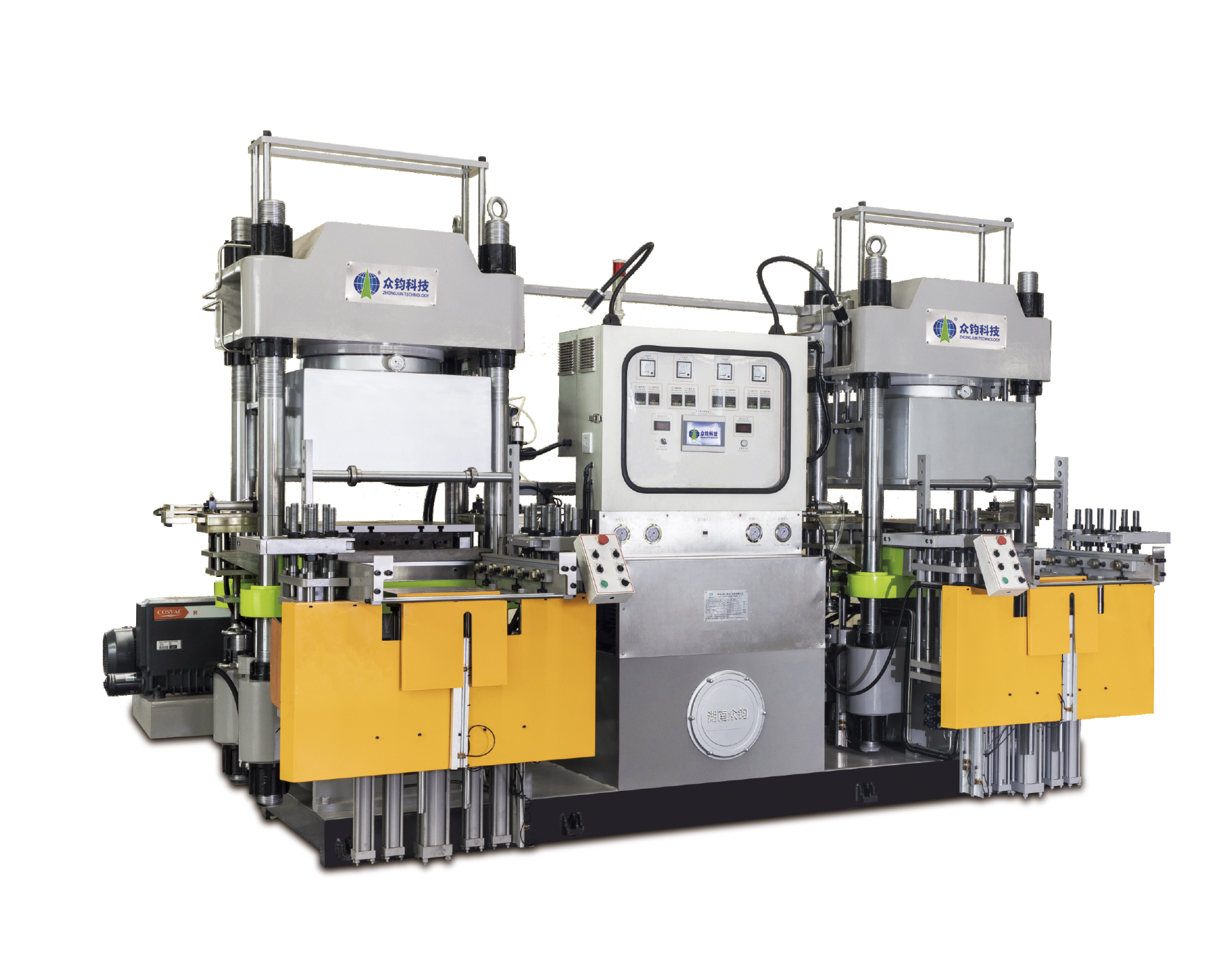

Dual-Setup Vacuum Vulcanizing Press

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Vacuum flat vulcanizing double machine, applicable to a very wide range of areas, especially in the Yangtze River Delta and the Pearl River Delta region, the main products, seals, household goods, health care products, medical equipment, high-speed rail, automotive, aerospace industry, the new material moulding; applicable rubber; natural rubber, silicone rubber, EPDM, neoprene, fluoroelastomer and so on; theoretically speaking, as long as there are moulds can be done with the equipment's standard equipment: ejector pins 2RT3RT4RT
Type ZJC200-400T(TONS)
00447888729208
Booking Now
Detail

MACHINE FEATURES

01.Double proportional oil sy stem design,good stability, stable conversion,low failure rate,reliable,easy to use and safe.

02.The high-precision steel structure of the access template is ground and nitrided to achieve a high-precision platform surface.

03.The body of the whole equipment has sufficient rigidity,wear resistance,good guiding accuracy and stability.

04.Vacuum pump,2XZ-15D-15L/S;Vacuum degree up to ≤0.1. Suitable for various two-layer or multi-layer molds, with express delivery capacity.


SUITABLE PRODUCT

Industrial rubber     Medical     Living     Auto parts


TECHNICSL PARAMETERS

Type

ZJC - 200T

ZJC - 250T

ZJC -300T

ZJC - 350T

ZJC - 400T

Clamping force（Ton）

200

250

300

350

400

Opening stroke（mm)

300

300

300

350

400

Heating plate dimension (mm）

560X600

650X600

650X700

700X700

800X800

Main cylinder diameter（mm）

   Φ360

     Φ400

      Φ450

    Φ475

Φ520

Motor power（Kw）

7.5X2

7.5X2

7.5X2

         7.5X2

11X2

Heating power（Kw）

16.4X2

19.8X2

24X2

          24X231.2X2

Pumping speed（㎡／h）

             100

100

200

          200

200

Mold opening form

Rise and fall - entry and exit cross - double layer moulding - front top moulding - middle layer moulding (multi-layer moulding)

Machine size(m)

(Length X Width X Height）

3.5X2.4X2.2

3.8X2.5X2.2

     4.2X2.6X2.3
     4.5X2.7X2.5

5X2.9X2.6

Whole weight（Ton）

10

12

 14         16

20
