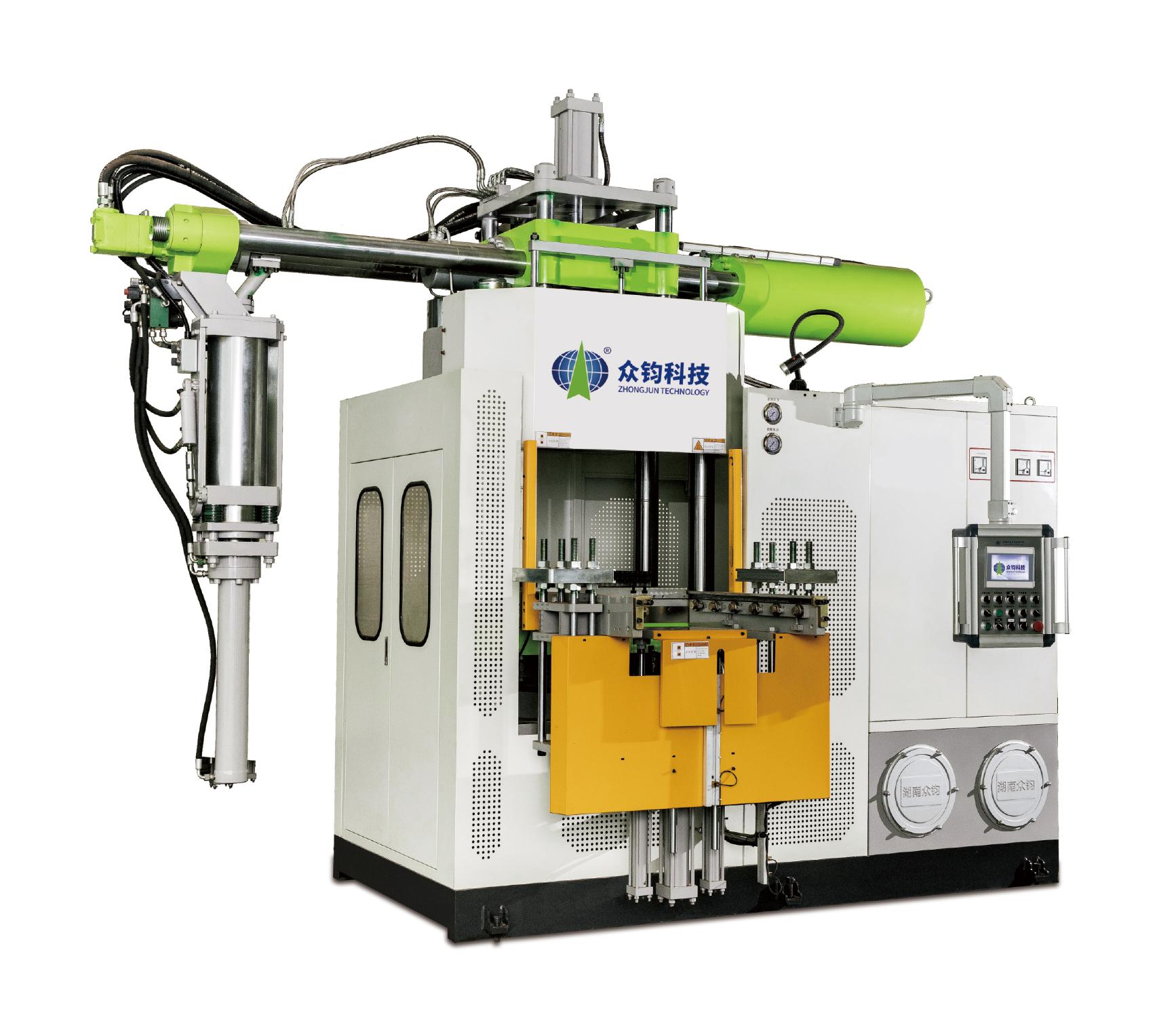

FIFO Horizontal Injection Molding Machine
Its unique design simplifies material changes and cleaning processes. Suitable for rubber hardness ranging from 50 to 75 degrees, this machine comes standard with ejector needles in 2RT, 3RT, and 4RT configurations and offers injection volumes of 3000/4000CC, making it an essential tool for efficient and flexible production.
MACHINE FEATURES
01. Adopting the horizontal advanced injection structure, the injection force is stable and reliable.
02. Super large-capacity feeding structure, automatically selectable feeding barrel,saving time and
material, suitable for the rapid replacement of different colour performance rubber production.
03. The injection plunger can be moved outside the injection barrel for maintenance and replacement is convenient and fast.
04. Adopt a synchronous lifting mold lifting mechanism,which is stable and reliable.
05. Hot plate heating is controlled by zones, the temperature is more uniform; fully enclosed safety baffle and grating,higher equipment operation safety level.
06. The first-in-first-out injection structure adopts advanced European and American design concepts.The injection force is stable and reliable.
SUITABLE PRODUCT
Industrial rubber Medical Lifestyle Aerospace Automotive parts Seals
TECHNICSL PARAMETERS
Type | ZJBX - 200T | ZJBX - 300T | ZJBX - 400T |
Injection volume（CC） | 2500 | 4000 | 5000 |
Injection pressure（bar） | 1700 | 1700 | 1700 |
Clamping force（Ton） | 200 | 300 | 400 |
Heating plate dimension（mm） | 560X600 | 700X700 | 800X800 |
Opening stroke（mm) | 500 | 550 | 600 |
Min.mould thickness（mm） | 60 | 60 | 60 |
Total power（kw） | 33 | 45 | 55 |
Machine size（m） (Length X Width X Height） | 4X2.4X3 | 4.2X2.7X3.2 | 4.8X3X3.5 |
Whole weight（Ton） | 8 | 10 | 12 |
