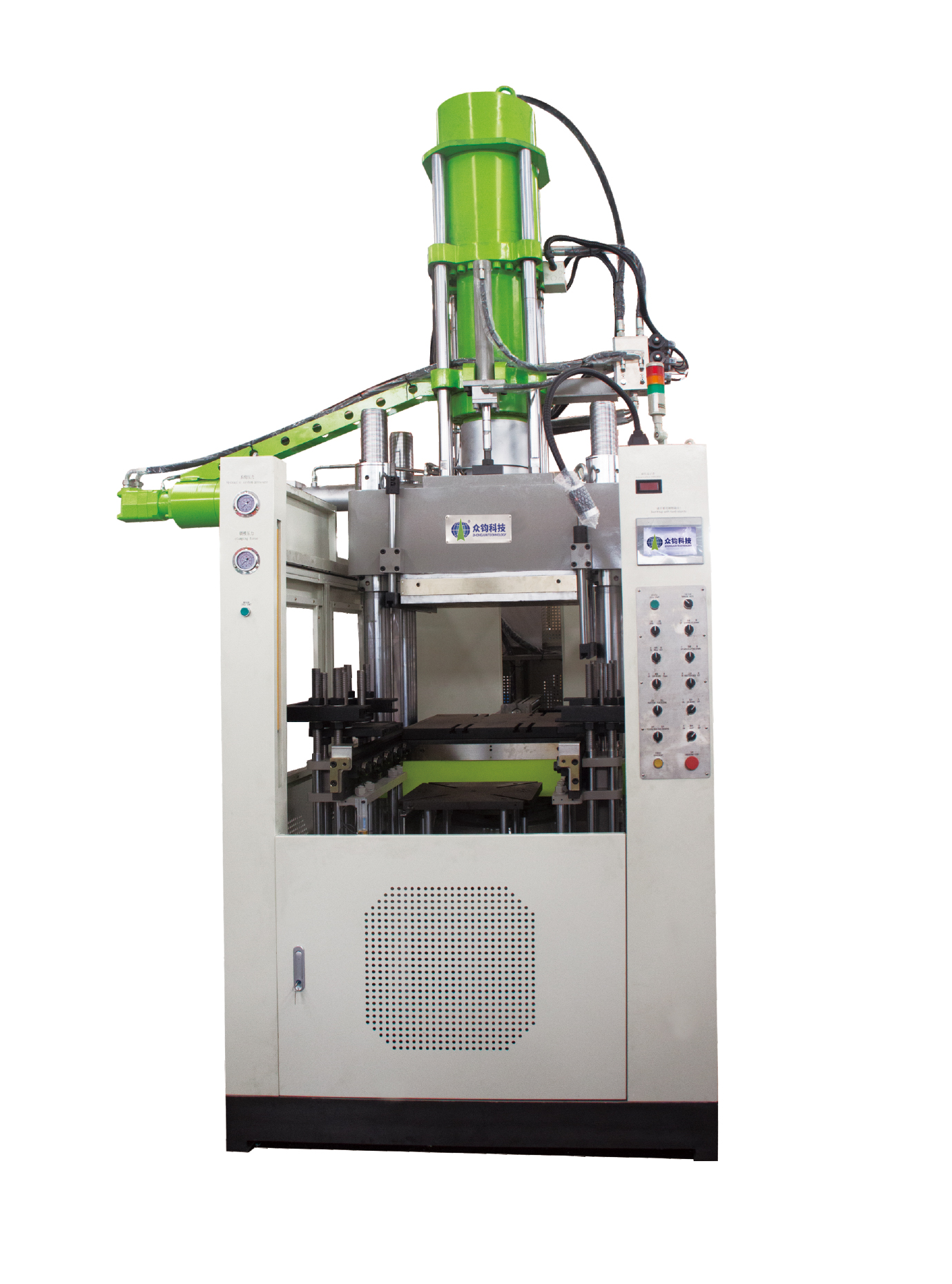

Advanced Vertical Rubber Injection Molding Machine
This machine is compatible with a silicone feeding barrel for dual-use flexibility. A potential drawback is the risk of rubber aging if temperature control is not precisely managed. Designed for rubber hardness between 50 to 75 degrees, it accommodates a broad spectrum of rubber types.
The machine comes standard with ejector needles in 2RT, 3RT, and 4RT configurations and offers injection volumes of 3000/4000/5000/6000CC, ensuring versatility and high performance in rubber molding operations.
MACHINE FEATURES
01.double proportional oil system design,good stability, stable conversion,low failure rate,reliable,easy
to use and safe.
02.The body of the whole equipment has sufficient rigidity,wear resistance,good guiding accuracy and
stability.
03.Cooperate with the injection device to realize four-stage injection speed and injection pressure,
and three-stage holding pressure.
04.It can meet the requirements of different rubber materials for injection conditions and has rapid production capacity.
SUITABLE PRODUCT
Industrial rubber Medical Lifestyle Aerospace Automotive parts Seals
TECHNICSL PARAMETERS
Type | ZJAH - 200T | ZJAH - 300T | ZJAH - 400T |
Injection volume（CC） | 2500 | 4000 | 5000 |
Injection pressure（bar） | 1880 | 1700 | 1700 |
Clamping force（Ton） | 200 | 300 | 400 |
Heating plate dimension（mm） | 560X600 | 700X700 | 800X800 |
Opening stroke（mm) | 500 | 550 | 600 |
Min.mould thickness（mm） | 60 | 60 | 110 |
Total power（kw） | 33 | 45 | 55 |
Machine size（m） (Length X Width X Height） | 2.8X1.8X3.5 | 3X2X4 | 3.5X2.2X4.3 |
Whole weight（Ton） | 7.5 | 9.5 | 12 |
